Network

OpenStack Neutron service is a core component of the OpenStack cloud computing platform, which provides “networking as a service” between interface devices managed by other OpenStack components such as Nova (compute) and Cinder (block storage) services. Neutron allows users to create and manage various networking services like VLANs, SDNs (Software Defined Networks), and other complex network topologies.

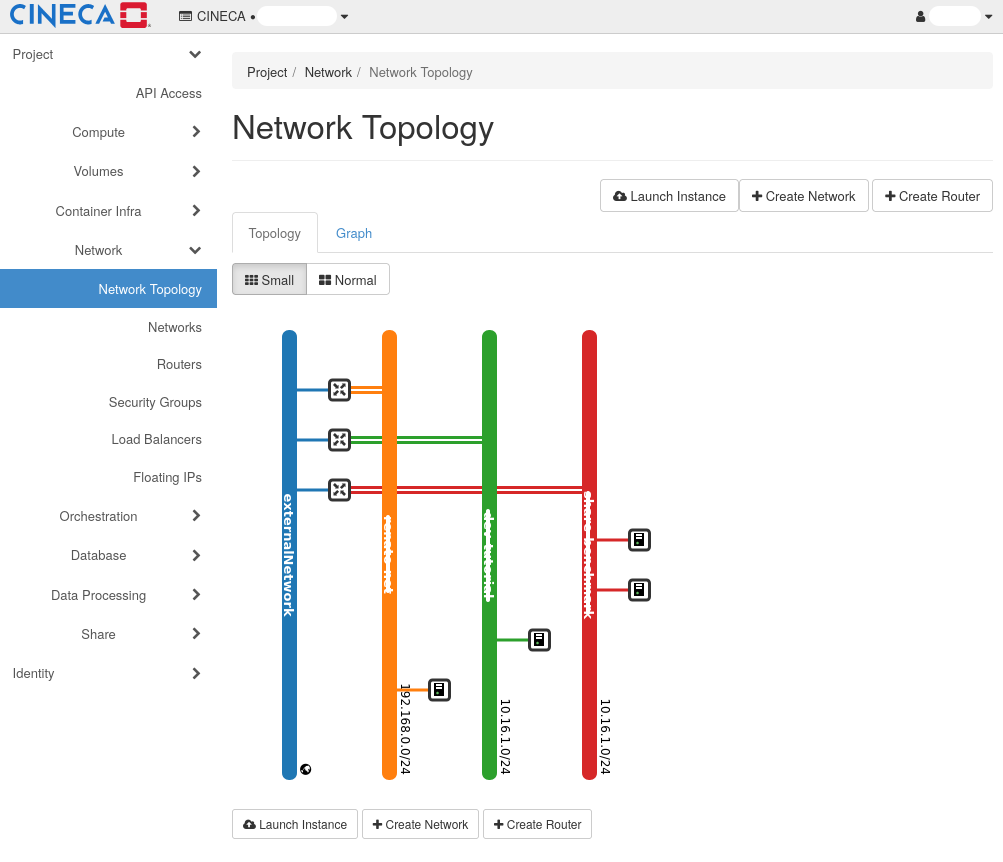

../../../_images/openstack_network_topology.png

Project networks are isolated and private. These networks are not accessible from outside the OpenStack environment unless routed through an external network. The external network is the public-facing network that allows VMs within the tenant networks to access the internet.

To operate, a network will need at least a subnet and a router. A subnet is a range of IP addresses in your project’s network, while a router is the virtual device that forwards traffic between your project and the external network.

Once the project has a network, it is possible to link to it virtual machines and other resources in order to connect them between each other and to the external network.

Subnets

A subnet is a range of IP addresses in your project’s network. You can create subnets to group instances according to security and operational needs. When you create a subnet, you specify the CIDR block for the subnet, which is a subset of the network CIDR block.

Note

Typical CIDR reserved for private networks are: 192.168.0.0/16, 10.0.0.0/8 or 172.16.0.0/12.

Routers

With OpenStack routers, you can create and manage multiple networks, define routing rules, and control the flow of traffic between subnets. This flexibility allows you to design and implement complex network topologies to meet the specific requirements of your cloud infrastructure. In addition to basic routing functionality, OpenStack routers support advanced features like floating IPs, which allow you to associate a public IP address with a private IP one to enable external access to instances on your private network. The gateway is the IP address of the router that connects the subnet to the external network. The gateway IP address is typically the first or last IP address in the subnet range.

Floating IPs

In OpenStack, instances are by default assigned private IP addresses from the internal network. These private IPs are not reachable from outside the OpenStack environment. However, by assigning a floating IP to an instance, the instance becomes reachable from the external network, enabling inbound and outbound communication via the internet.

When a floating IP is allocated, it is reserved from a pool of available public IP addresses. This pool is configured by the cloud administrator and can be customized based on the organization’s requirements. Each cloud project has a limited number of floating IPs controlled by the project quota and these need to be allocated to the project from the central pool prior to their use.

Security Groups

A security group acts as a virtual firewall for instances and other resources on a network controlling the inbound and outbound traffic to instances. One security group can be associated with one or more instances and a single instance can have multiple security groups associated to it. It is always possible to modify, add and remove security groups in a virtual machine after its creation.

The security group contains one or more security rule which specify the network access. A security rule defines how traffic can enter/exit the VM instance via:

  • an IP address or CIDR block

  • an EtherType (IPv4 or IPv6)

  • a direction (INGRESS or EGRESS)

  • a port the traffic will pass through

For example the rule: INGRESS IPv4 TCP 22(SSH) 131.175.44.1 will imply that the virtual machine will be reachable via SSH on port 22 using TCP protocol from the IP 131.175.44.1
